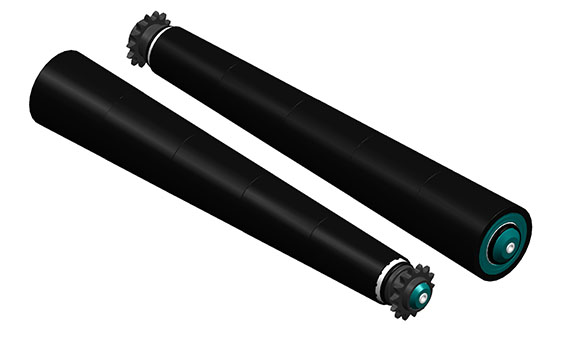

B251 single polymer sprocket tapered sleeve roller

This series are suitable for middle duty conveying.


Features & Benefits

Advantages:

Based on the B212/B213series design, covered with polypropylene(PP)tapered sleeve, abrasion resistance, low noise, shockproof, not influenced by change of temperature and climate. As sprocket made of Polyamide(popularly named Polymer Sprocket)as the driving element, the running noise is greatly lowed down compared with steel sprocket. Precision ball bearing polymer bearing housing, end cap form the bearing unit whlch is very important, it is not only for good looking but also further more for the smooth and quiet running. The covering of the end of rolIer, well dust proof and water splash proof in operation environment.

Disadvantages:

Cause the material is polymer,it can' t be used in the high temperature environment.

Application

Specifications

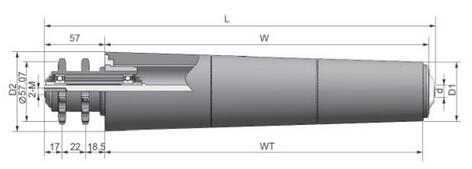

Material of tube Tube diameter and wall thickness WT D1 D2
Galvanized steel tube + plastic tapper cover Φ 50*1.5 250 Φ 52.9 Φ 68.9
300 Φ 56 Φ 74.9
350 Φ 52.9 Φ 74.9
400 Φ 56 Φ 81.1
450 Φ 52.9 Φ 81.1
500 Φ 56 Φ 87.4
550 Φ 52.9 Φ 87.4
600 Φ 56 Φ 93.7
650 Φ 52.9 Φ 93.7
700 Φ 56 Φ 100
750 Φ 52.9 Φ 100
800 Φ 56 Φ 106.3
850 Φ 52.9 Φ 106.3

Roller diameter(D) Diameter of axle(d) Suitable for chain
Φ 50 Φ 12/15 L=W+63 08B14T
Φ12(M8*15)       Φ15(M10*20)
