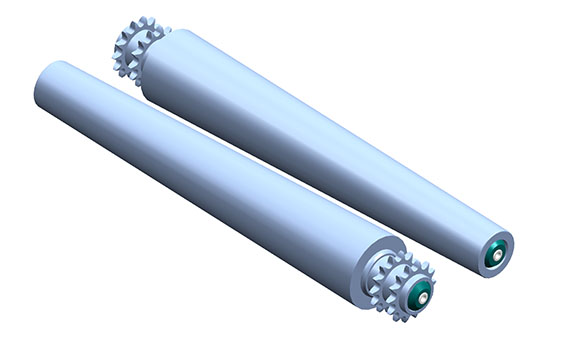

B242 double steel sprocket tapered roller/female t

This series are suitable for middle, heavy duty oonveying.


Features & Benefits

Advantages:

Steel sprocket welded with tube, make it capable to transmit higher torque, and meet the request of transportation of heavy duty 1oad. The tapered roller that stee1 bearing housing of both sides welded with the tube, tight and durable. The bearing in the end of the sprocket is dismountable, good for maintenance and replacement. The covering of the end of roller, we11 dust proof and water splash proof in operation environment. Standard conical degree is 3.6, other degree could be customized. For better function of curve running, its sprocket teeth thickness is smaller than standard data.

Application

Specifications

Material of tube Tube width Big end D2
Galvanized steel tube + plastic tapper cover 300 68.9
400 75.1
500 81.4
600 87.7
700 94
800 100.3
900 106.6
1000 112.9
Stainless steel 300 68.9
400 75.1
500 81.4
600 87.7
700 94
800 100.3
900 106.6
1000 112.9

Roller diameter(D) Diameter of axle(d) Suitable for chain
Φ 50 Φ 12/15 L=W+63 08B14T
Φ12(M8*15)       Φ15(M10*20)
