Features & Benefits

Application

Specifications

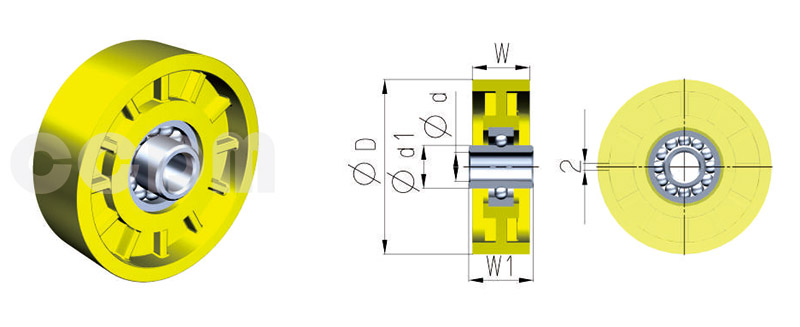

GA-01  GA-01-A


Code d(mm) d1(mm) D(mm) W(mm) W1(mm) Static load(kg) Dynamic load(kg) Weight(g)
GA-01 8.1 12 48.5 16 18 40 60 35
GA-01-A 8.1 12 38 14.3 18 35 50 26

Material:608 ZZ+POM or ABS

Color: white,yellow,grey,batch order more than 10000 only,the colors can be specified by customer


GA-02


Code d(mm) d1(mm) D(mm) W(mm) W1(mm) Static load(kg) Dynamic load(kg) Weight(g)
GA-02 8.1 12 48.5 16 18 40 60 30

Material:608 ZZ+POM or ABS

Color:batch order more than 10000 only,the colors can be specified by customer

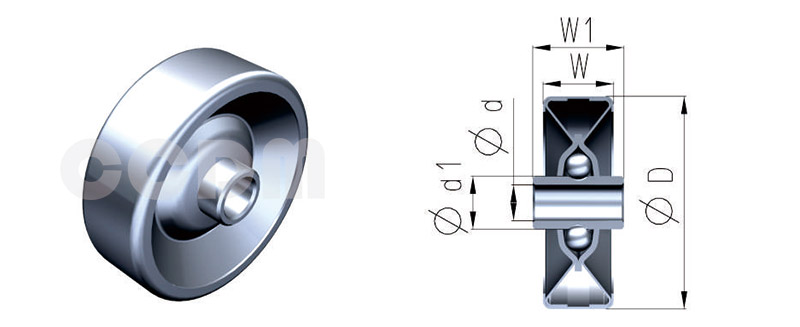

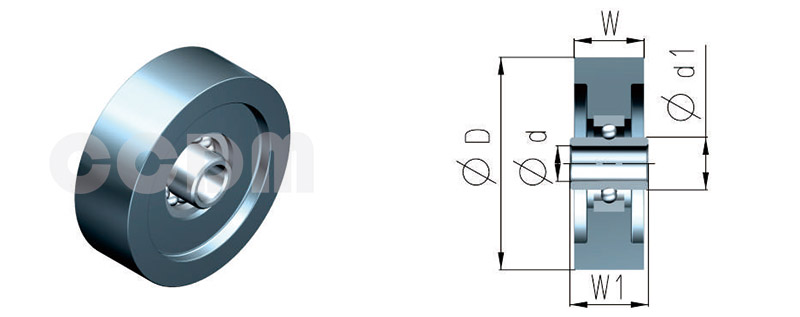

GB-01  GB-02A  GB-02B


Code d(mm) d1(mm) D(mm) W(mm) W1(mm) Static load(kg) Dynamic load(kg) Weight(g)
GB-01 6.5 12.5 38.5 13 20.6 8 10 56
GB-02A 8.1 12.5 49 16 20.6 8 15 66
GB-02B 6.5 12.5 49.2 14.2 24 35 45 105

Material:galvanized steel surface

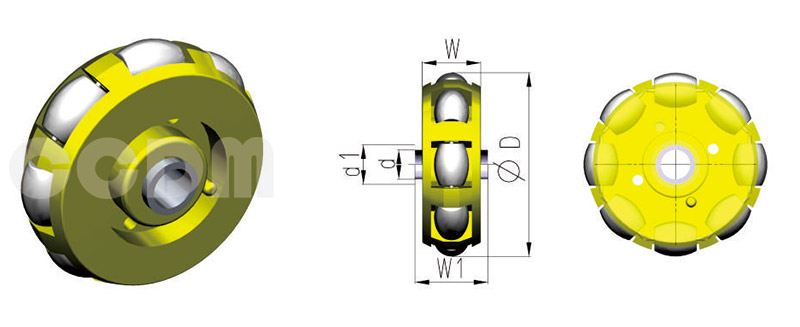

GD-01A/02A/01B/01C/01D/02.02E/03A/03AT/03C


Code d(mm) D(mm) W(mm) W1(mm) Static load(kg) Dynamic load(kg) Weight(g)
GD-01A Φ 8.3 Φ 51 16.7 20 8 10 29
GD-02A Φ 12.3 Φ 51 16.5 20.5 8 10 27
GD-01B Φ 10.3 Φ 51 16.7 16.7 8 10 27
GD-01C Φ 13.1 Φ 51 16.3 16.3 8 10 26
GD-01D Φ 10.3 Φ 51 16.7 26.3 8 10 30
GD-02 Φ 12.7 Φ 51 16.3 16.3 8 10 25
GD-02E Φ 6.2 Φ 51 16.5 16.5 8 10 26
GD-03A Φ 10.1 Φ 40 15.3 15.3 8 10 10
GD-03AT Φ 10.3 Φ 40 15 25 8 10 15
GD-03C Φ 10.1 Φ 30 12.2 12.2 8 10 7

Material:POM + nylon

Color: yellow,batch order more than 10000 only,the colors can be specified by customer
