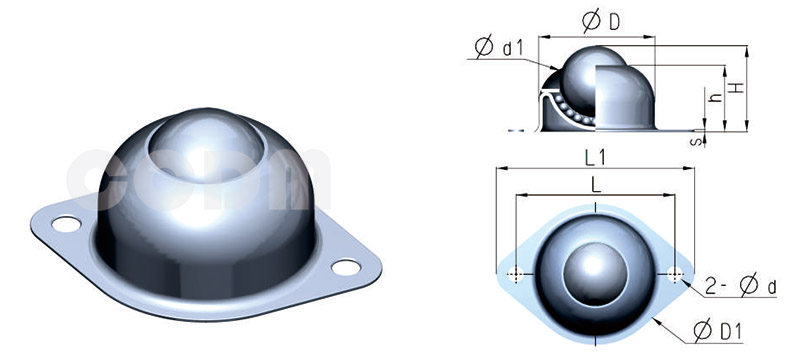

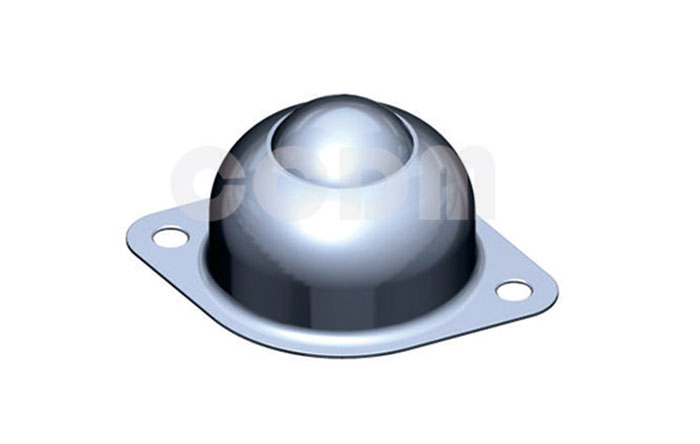

WA-01-A
| Code | d(mm) | d1(mm) | D(mm) | D1(mm) | h(mm) | H(mm) | L(mm) | L1(mm) | S(mm) | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WA-01-A | 5.5 | 25.4 | 40 | 50 | 24 | 30.7 | 55.5 | 68.5 | 1.2 | 25 | 30 | 142 |
|
Material:carbon steel galvanized Ball:carbon steel ball,plastic steel ball |
||||||||||||

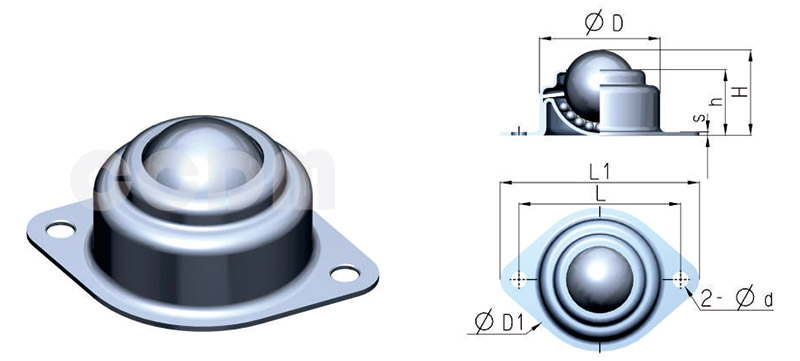

WA-01-B/C
| Code | d(mm) | d1(mm) | D(mm) | D1(mm) | h(mm) | H(mm) | L(mm) | L1(mm) | S(mm) | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WA-01-B | 5.5 | 25.4 | 42 | 50 | 24 | 30.7 | 55.5 | 68.5 | 1.2 | 25 | 30 | 136 |
| WA-01-C | 4.2 | 15.875 | 27.8 | 32.8 | 15 | 20.5 | 40 | 50 | 1.6 | 15 | 20 | 38 |
|
Material:carbon steel or stainless steel |
||||||||||||

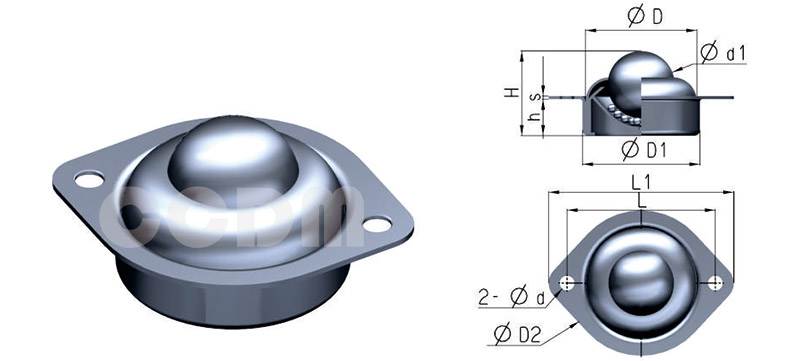

WA-02
| Code | d(mm) | D(mm) | d1(mm) | H(mm) | L(mm) | L1(mm) | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WA-02 | 7 | 65.5 | 25.4 | 46.4 | 62 | 77 | 90 | 110 | 480 |
|
Material:carbon steel galvanized |
|||||||||

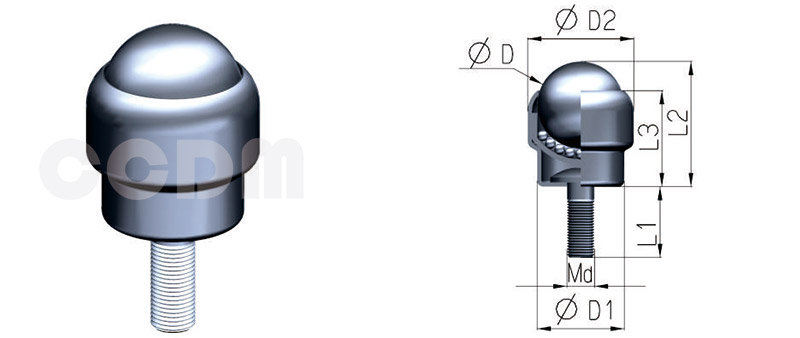

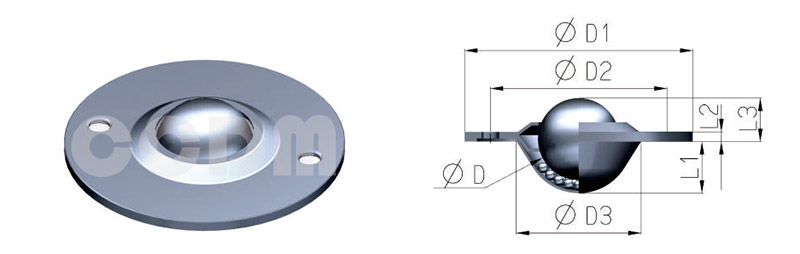

WB-01
| Code | d(mm) | D(mm) | D1(mm) | D2(mm) | D3(mm) | L1(mm) | L2(mm) | L3(mm) | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WA-01-A | 5.5 | 25.4 | 70.5 | 55.5 | 40 | 17.3 | 3 | 12.5 | 45 | 55 | 147 |
|
Material:carbon steel galvanized Ball:carbon steel ball,plastic steel ball |
|||||||||||
WB-02
| Code | d(mm) | d1(mm) | D(mm) | D1(mm) | D2(mm) | h(mm) | H(mm) | L(mm) | L1(mm) | S(mm) | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WB-02 | 5.5 | 25.4 | 42 | 44.5 | 55 | 13.8 | 32 | 56 | 70 | 1.2 | 25 | 30 | 158 |
|
Material:carbon steel galvanized Ball:carbon steel ball,plastic steel ball |
|||||||||||||

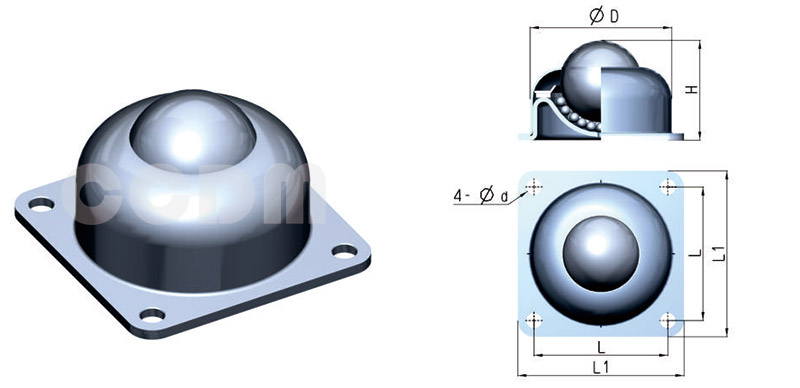

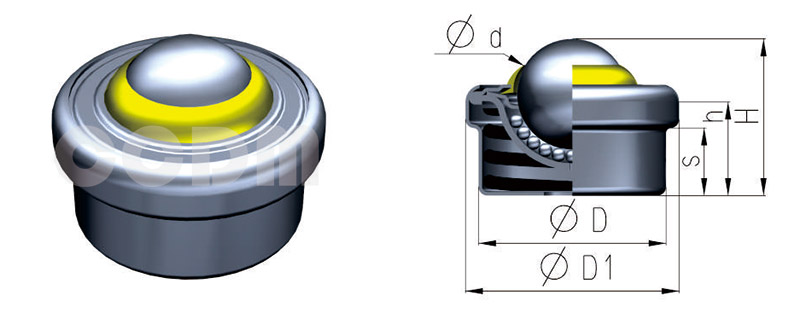

WC-01
| Code | d(mm) | D(mm) | d1(mm) | h(mm) | H(mm) | S(mm) | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WC-01 | 25.4 | 43 | 49 | 25.5 | 35 | 15.5 | 45 | 55 | 165 |
|
Material:carbon steel galvanized |
|||||||||

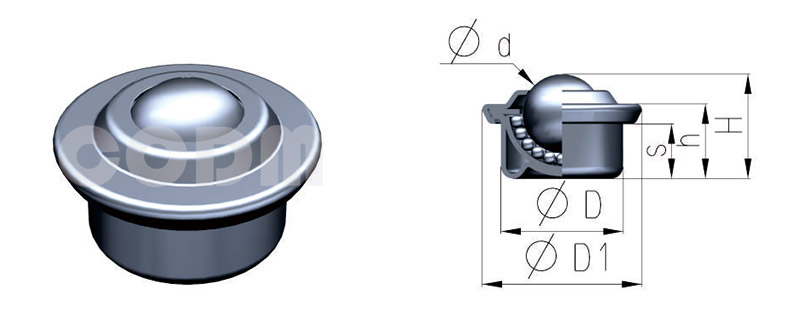

WC-02
| Code | d(mm) | D(mm) | d1(mm) | h(mm) | H(mm) | S(mm) | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WC-02 | 22.22 | 35.5 | 45 | 9 | 28 | 3 | 40 | 50 | 126 |
|
Material:carbon steel galvanized |
|||||||||

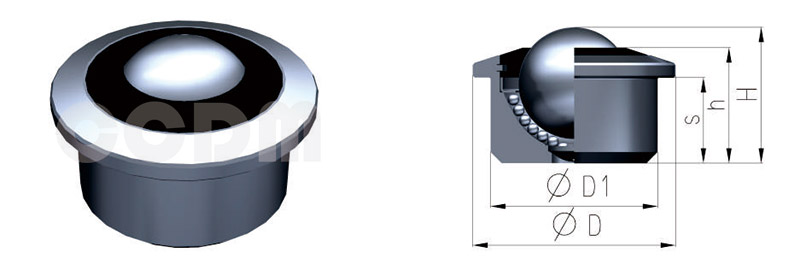

WC-03
| Code | d(mm) | D(mm) | d1(mm) | h(mm) | H(mm) | S(mm) | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WC-03 | 15.875 | 24.5 | 32 | 15 | 21 | 12 | 15 | 17 | 44 |
|
Material:carbon steel galvanized |
|||||||||

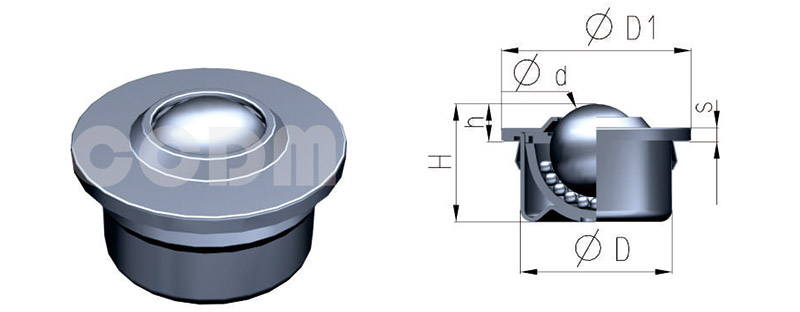

WD-01/02
| Code | D(mm) | D1(mm) | D2(mm) | d(mm) | L1(mm) | L2(mm) | L3(mm) | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WD-01 | 19.05 | 16 | 23.5 | M6 | 14 | 27 | 21 | 30 | 40 | 50 |
| WD-02 | 25.4 | 25 | 31 | M8 | 17 | 36 | 28 | 40 | 50 | 127 |
|
Material:carbon steel galvanized |
||||||||||
WD-03
| Code | d(mm) | d1(mm) | D(mm) | D1(mm) | D2(mm) | h(mm) | h1(mm) | H | S | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WD-03 | M10 | 25.4 | 36 | 40 | 45.5 | 14 | 27.7 | 36 | 3 | 40 | 50 | 171 |
|
Material:carbon steel galvanized |
||||||||||||

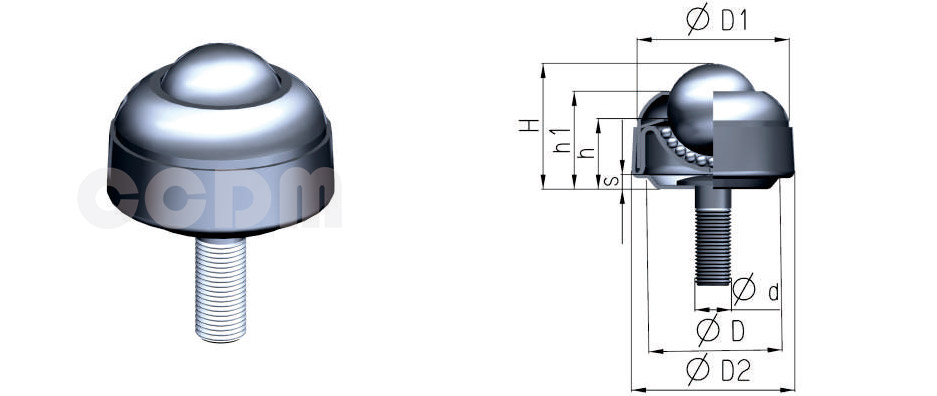

WG-01
| Code | D(mm) | d1(mm) | D1(mm) | S(mm) | h(mm) | H(mm) | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WG-01 | 54.6 | 30 | 44.5 | 23 | 31 | 37 | 250 | 250 | 320 |
|
Material:carbon steel quenching,galvanized |
|||||||||

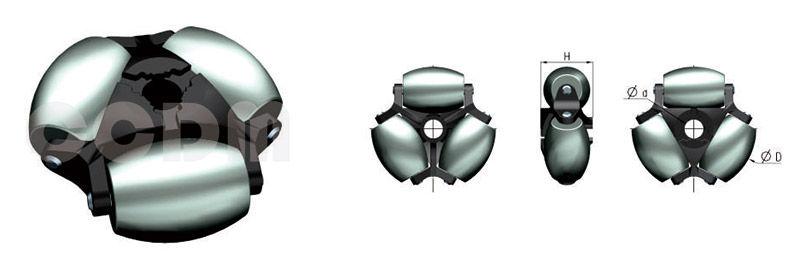

WH-01/02/03/04
| Code | d(mm) | D(mm) | H1(mm) | H(mm) | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WH-01 | 11HEX | 60 | / | 40 | 25 | 25 | 65 |
| WH-02 | 12.2 | 60 | / | 40 | 25 | 25 | 65 |
| WH-03 | 10.2 | 60 | 44 | 40 | 25 | 25 | 87 |
| WH-04 | 8.2 | 50 | 40.2 | 37 | 20 | 20 | 65 |
|
Material:reinforced nylon |
|||||||

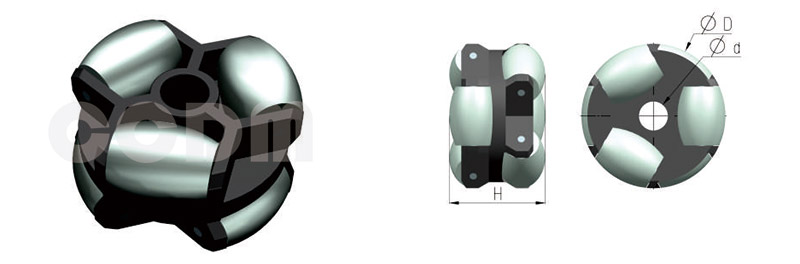

WE-01/01A/02
| Code | d(mm) | D(mm) | H(mm) | Static load(kg) | Dynamic load(kg) | Weight(g) |
| WE-01 | 12.5 | 82 | 64 | 25 | 25 | 200 |
| WE-01A | 11HEX | 82 | 64 | 25 | 25 | 200 |
| WE-01 | 8.1 | 48 | 43 | 20 | 25 | 30 |
|
Material:reinforced nylon |
||||||
