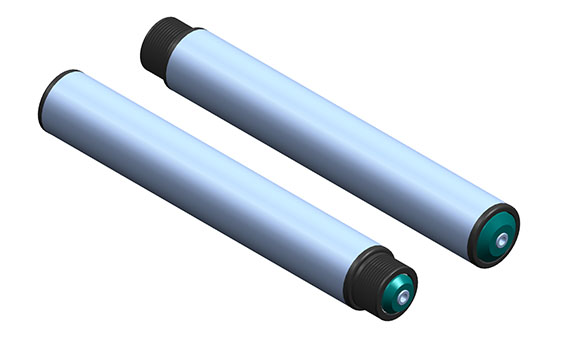

B410 polymer poly-vee belt drive roller/female thr
This series are suitable for light, middle duty conveying.
Features & Benefits
Advantages:
High speed,operation smoothly and steady,The noisy of polymer bearing components is greatly lowed down,that composed of precision ball bearing, polymer bearing housing and end cap for nice appearance.Besides,Polymer cover has the function of dust proof and water splash proof.
Disadvantages:
Cause the material is polymer,it can' t be used in the high temperature environment.
Application
Specifications
| Material of tube | Tube diameter and wall thickness |
| Galvanized steel | Φ 50*1.5 |
| Stainless steel | Φ 50*1.5 |

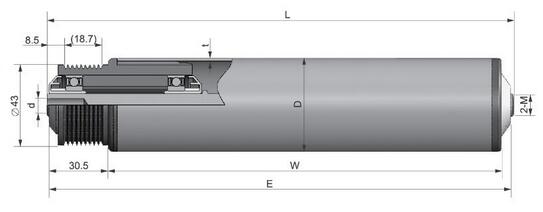

| Roller diameter(D) | Diameter of axle(d) | |||||
| Φ 50 | Φ 12/15 | E=W+35 | L=W+36 | |||
| Φ12(M8*15) Φ15(M10*20) | ||||||
