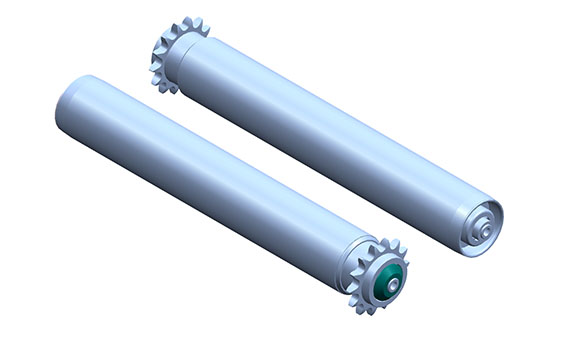

B222 style single steel sprocket driven roller /fe

This series are suitable for middle, heavy duty conveying.


Features & Benefits

Advantages:

Steel sprocket welded with tube,make it capable to transmit higher torque,and meet the request of transportation of heavy duty load.The bearing in the end of the sprocket is dismountable,not only increase load capacity,but also helpful for maintenance and replacement.The covering on the outside of the sprocket,well dust proof and water splash proof in operationenvironment.The precision ball bearing is fixed by impact in the steel bearing housing,tight and durable.Tight steel bearing housing could bear more heavier duty polymer bearing unit.

Disadvantages:

Compared with roller with polymer bearing unit,its noise is a little bit louder.

Application

Specifications

Material of tube Tube diameter and wall thickness
Galvanized steel Φ 50*1.5
Φ 50*2.0
Φ 60*2.0
Φ 60*3.0
Φ 76*3.0
Φ 76*3.75
Φ 80*3.0
Φ 89*3.0
Φ 89*3.75
Galvanized steel with flange Φ 76*3.0
Φ 76*3.75
Φ 80*3.0
Φ 89*3.0
Φ 89*3.75

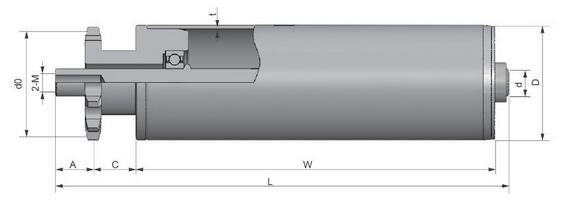

Roller diameter(D) Diameter of axle(d) Suitable for chain A C d0
Φ 50 Φ 12 L=W+40 08B11T 17 18.5 Φ 45.08
Φ 50 Φ 15 L=W+41 08B14T 17 18.5 Φ 57.07
Φ 60 Φ 12/15 L=W+41 08B14T 17 18.5 Φ 57.07
Φ 76 Φ 15 L=W+41 08B14T 17 18.5 Φ 57.07
Φ 76

Φ 20

L=W+44 10A13T 20 18.5 Φ 66.33
Φ 80 Φ 20 L=W+44 10A15T 20 18.5 Φ 76.35
Φ 89 Φ 20 L=W+44 10A15T 20 18.5 Φ 76.35
Φ12(M8*15)       Φ15(M10*20)       Φ20(M12*25)
