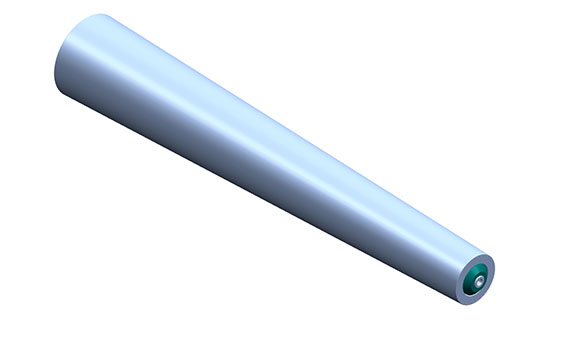

A211 Gravity Tapered Roller/female thread

Advantages:

Roller(standard taper3.6 degrees, can according to customer demand for customized) composed of at the two ends of the bearing seat and the cylinder body welding and at both ends of a plastic endcaps prevent entry of dust and splash water.

Features & Benefits

Advantages:

Roller(standard taper3.6 degrees, can according to customer demand for customized) composed of at the two ends of the bearing seat and the cylinder body welding and at both ends of a plastic endcaps prevent entry of dust and splash water.

Application

Specifications

Material of tube Tube width Big end D2
Galvanized steel 300 68.9
400 75.1
500 81.4
600 87.7
700 94
800 100.3
900 106.6
1000 112.9
Stainless steel 300 68.9
400 75.1
500 81.4
600 87.7
700 94
800 100.3
900 106.6
1000 112.9

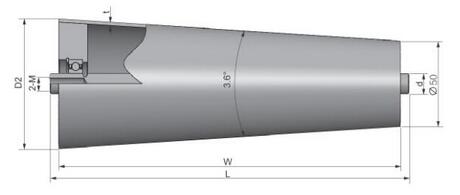

Roller diameter(D) Diameter of axle(d)
Φ 50 Φ 12/15 L=W+11
Φ12(M8*15)       Φ15(M10*20)
