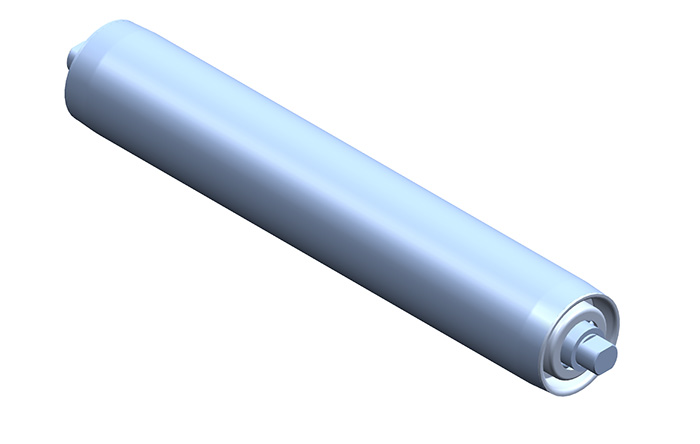

A103 style gravity conveyor roller/open slot

This series is suitable for medium,heavy duty conveying


Features & Benefits

Advantages:

there are many choices for this kind of roller(anti-static roller),can operate well in high or low temperature.the precision components are composed of precision ball bearing and steel bearing housing,which has larger capacity than polymer

Application

Specifications

Heavy Duty Gravity Conveyor Roller (Open Slot)Heavy Duty Gravity Conveyor Roller (Open Slot)Heavy Duty Gravity Conveyor Roller (Open Slot)

Material of tube Tube diameter and wall thickness
Galvanized steel Φ 38*1.5
Φ 50*1.5
Φ 50*2.0
Φ 60*2.0
Φ 60*3.0
Φ 76*3.0
Φ 76*3.75
Φ 80*3.0
Φ 89*3.0
Φ 89*3.75
Stainless steel Φ 38*1.2
Φ 50*1.5
Φ 60*2.0
Φ 76*3.0

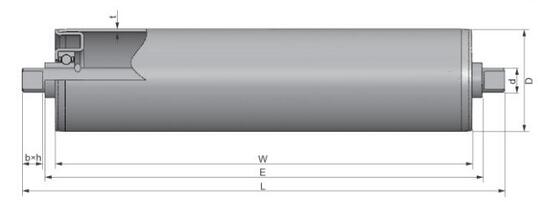

Roller diameter(D) Diameter of axle(d)
Φ 38 Φ 12 E=W+10 L=W+32
Φ 50 Φ 12/15 E=W+10 L=W+32
Φ 60 Φ 12/15 E=W+10 L=W+32
Φ 76 Φ 15 E=W+10 L=W+32
Φ 76

Φ 20

E=W+10 L=W+40
Φ 80 Φ 20 E=W+10 L=W+40
Φ 89 Φ 20 E=W+10 L=W+40
Φ12(b/h=10/11)       Φ15(b/h-12/11)        Φ20(b/h=16/15)
